Front Wheel Angle senser G200

Introduction FSS-G200 is a single degree of freedom MEMS gyroscope module, which was originally designed for measuring the front wheel angle of automatic driving of agricultural machinery.
Volume 45x45x22.8mm
Weight 50g
Application field Vehicle , Automatic driving of agricultural machinery , Engineering vehicle , Underwater vehicle
Product features The module has the characteristics of high repeatability, good stability, good vibration and shock resistance.
Software interface Support RS232, CAN mainstream agricultural machinery controller interface
Hardware interface Customizable plug
86-15148215714
DetailTechnical IndexDownloadHardware and Structu

1、Product description

FSS-G200 is a single degree of freedom MEMS gyroscope module, which was originally designed for measuring the front wheel angle of automatic driving of agricultural machinery.

The module has the characteristics of high repeatability, good stability, good vibration and shock resistance. Large wheel angle can be measured under vibration environment, so that each module can play stably under various limit conditions, and ensure the high consistency of all product performance.

Application area

        • Vehicle

        • Automatic driving of agricultural machinery

        • Engineering vehicle

        • Underwater vehicle

2、Characteristic

Tactical MEMS gyroscope

5.0°/h   Bias Instability

0.1°/s Bias Repeatability

0.08°/s Ultra low output noise

High reliability

Shock resistance: 2000g0.5ms,half sine,3-axis

Shock vibration: 10g10~2KHz,3-axis

Stable operation at full temperature: -40 ℃~85℃

100% Magnetic shielding

IP67 Waterproof

Special bending resistant cable

Flexibledigital interface small size

Configurable output sampling rate up to 400Hz

Support CAN mainstream agricultural machinery controller interface

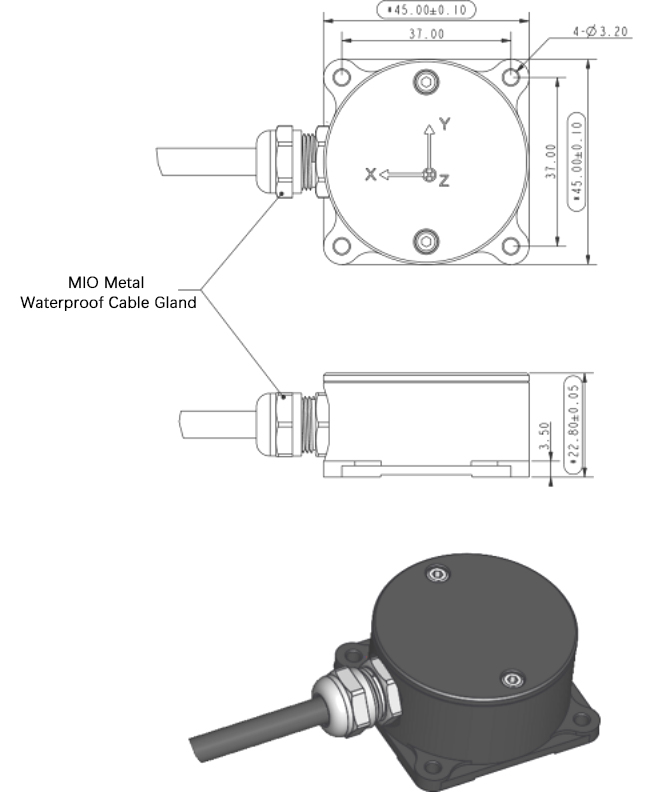

Size of 45*45*22.8mm and weighs 50g

On the basis of standard performance and output parameters, Forsence also provides customized software and logo services for your special needs.


Gyroscope Key Metrics

Parameters

Test Condition/Remark

Min.

Typ.

Max.

Unit

Measurement Range



±500


°/s

Bias Instability¹

@25℃, ALLAN Variance, 1σ


5.0


°/hr

Bias Repeatability

GJB


0.1


°/hr

Internal Low-pass Cutoff Frequency

Adjustable software

1.0

15

47

Hz

ODR²


1

100

400

Hz

Measure Delay



7.0


ms

Random Walk

@25℃, ALLAN Variance, 1σ


0.3


°/√hr

Note 1: IEEE standard values acquired from Allan Variance analysis in a static environment (25°C)

Note 2: Limited by the bandwidth of the serial port, if the baud rate of the serial port is 115200, the maximum output update rate is not greater than 100Hz.

Configuration
