NAV680-WP

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

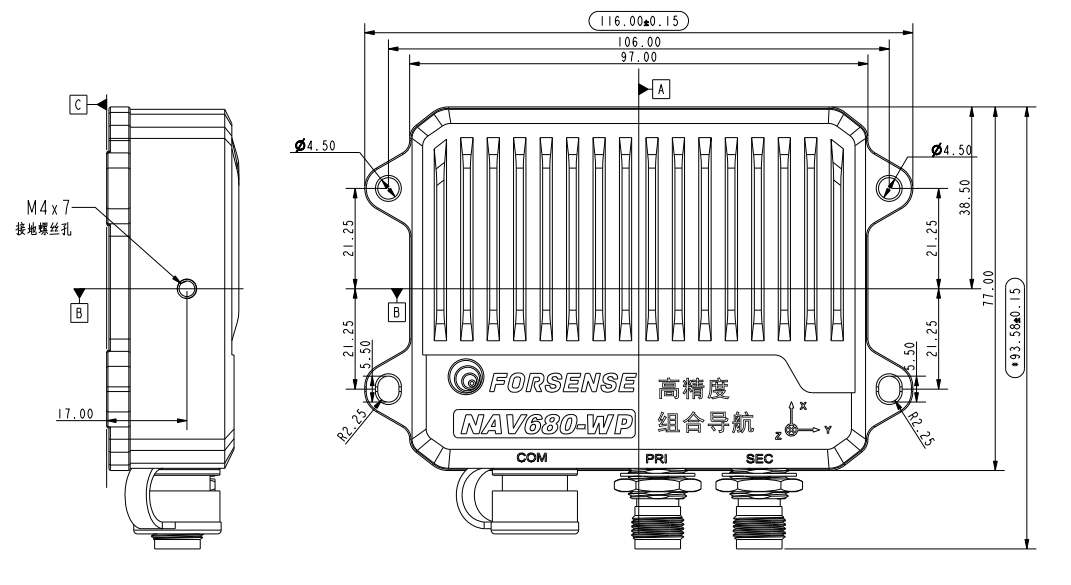

Volume 116*85.9*28mm

Weight 203g

Application field Agricultural robots, autonomous farm machinery, inspection vehicles, mining trucks and other open-area scenarios

Software interface 2×RS232 1×485 1×CAN

Hardware interface 2×GNSS 天线接口 1×电源接口 1×PPS接口

13482465596

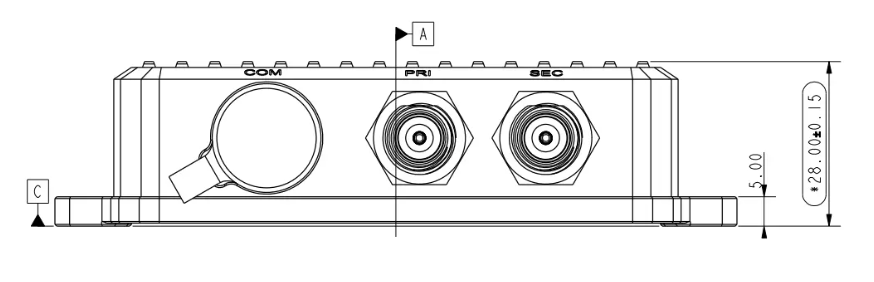

DetailTechnical IndexDownloadHardware and Structu

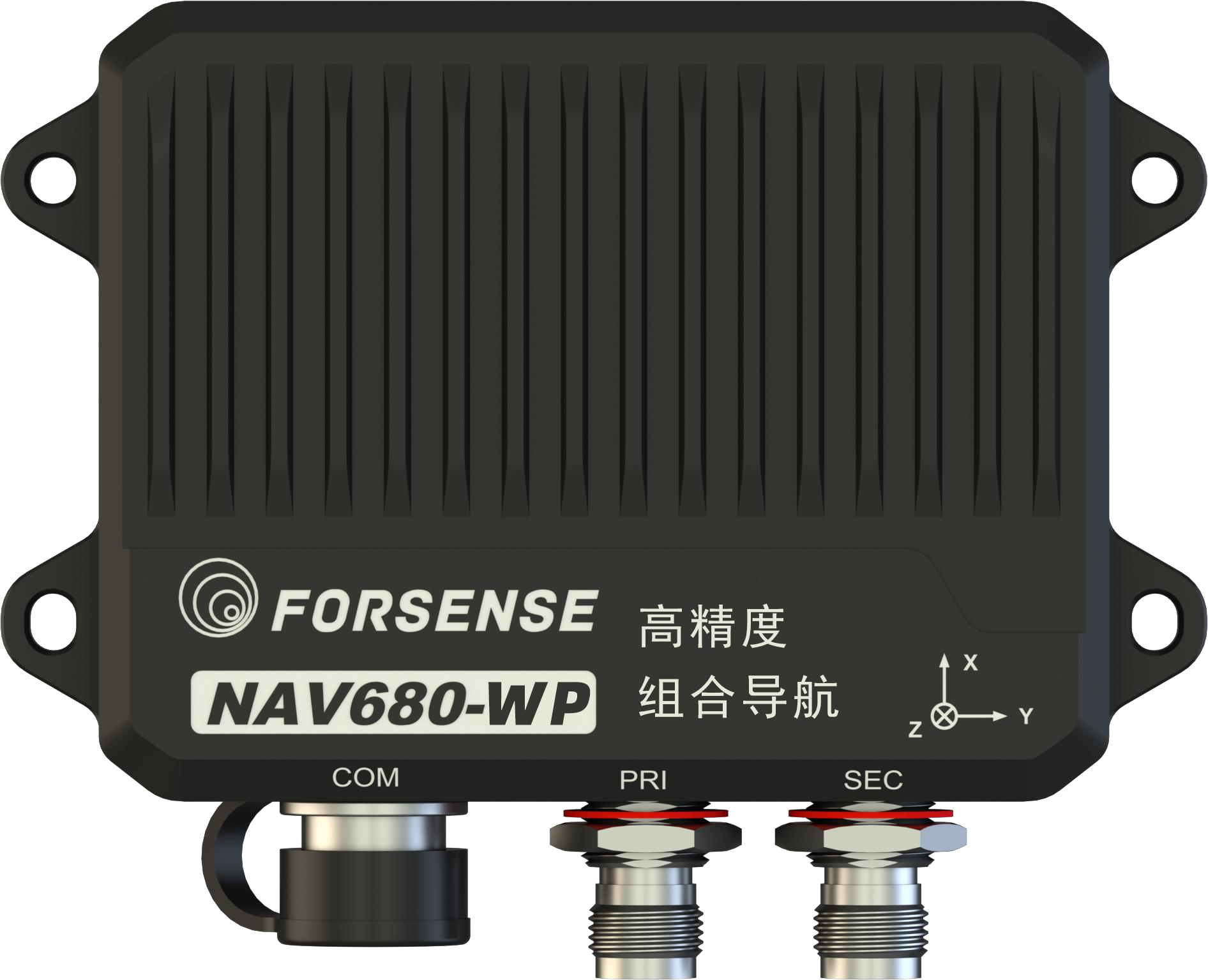

Forsense NAV680-WP is a GNSS-IMU integrated unit for precise, continuous positioning of low-speed autonomous vehicles in lightly sheltered farms, orchards and scenic zones. Adopting self-developed IMU, fusion algorithms and multi-constellation UM982 module, it covers full bands of BDS, GPS, GLONASS, Galileo and QZSS. Requiring no wheel odometer, its vehicle-specific multi-model fusion algorithm outputs high-precision attitude, heading, position and speed for farm machines, inspection cars and tourist shuttles to guarantee stable full-scene autonomous driving performance.

(Char count: 218)

表 1

姿态精度	Roll/Pitch :<0.2° rms Heading:<0.3° rms (车速大于1km/h，阿克曼转向结构车载场景)
更新率	100hz
陀螺量程	±500°/s
陀螺零偏不稳定性	4deg/h @1σ
加速度计量程	±6g
加速度计零偏稳定性	0.04mg @1σ
位置推算精度	<2% @1σ （车载场景，丢星 30s，无轮速计组合）
RTK指标	定位精度(RMS)	单点：水平1.5m/高程2.5mRTK: 水平1cm+1ppm 高程2cm+1ppm
	双天线定向精度(RMS)	0.1°/1m基线
	速度精度(RMS)	0.03m/s
	PPS精度（RMS）	20ns
	更新率	20hz
	RTK初始化时间	<5s（典型值）
接口	2×RS232 1×485 1×CAN 2×GNSS 天线接口 1×电源接口 1×PPS接口
