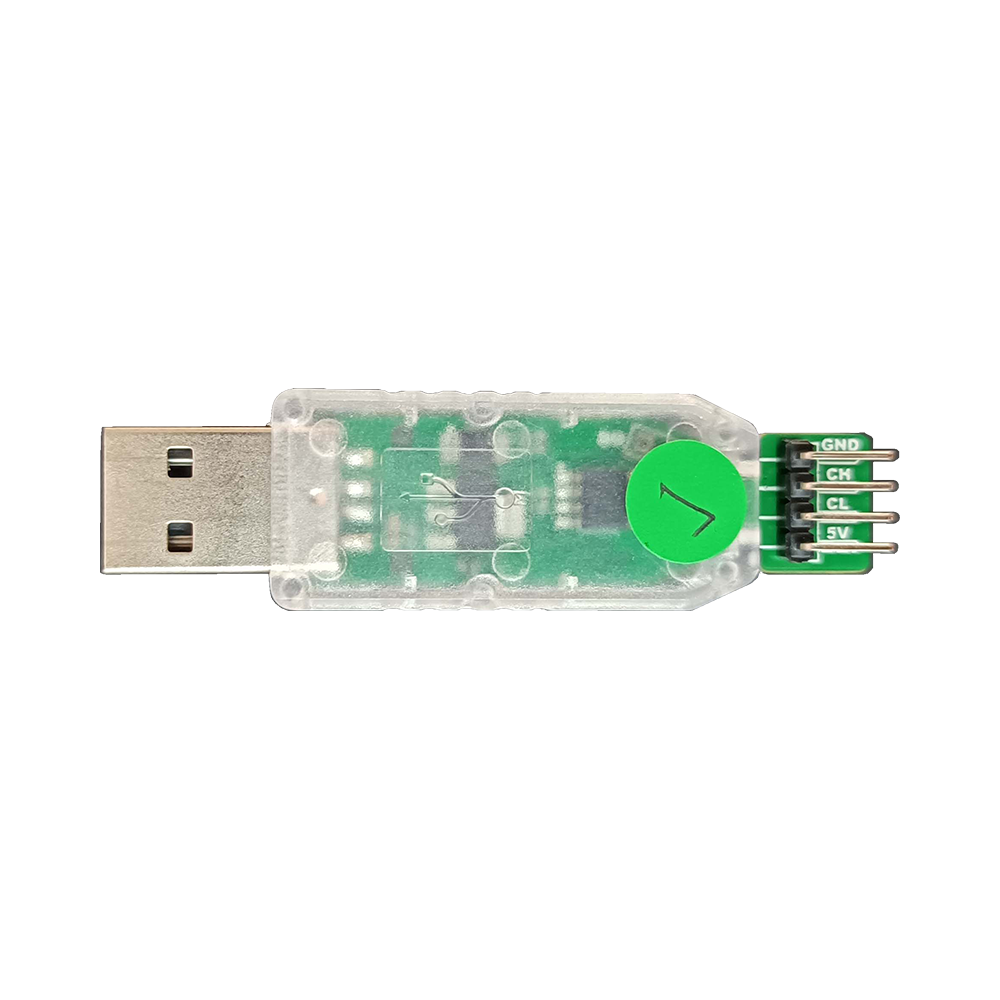

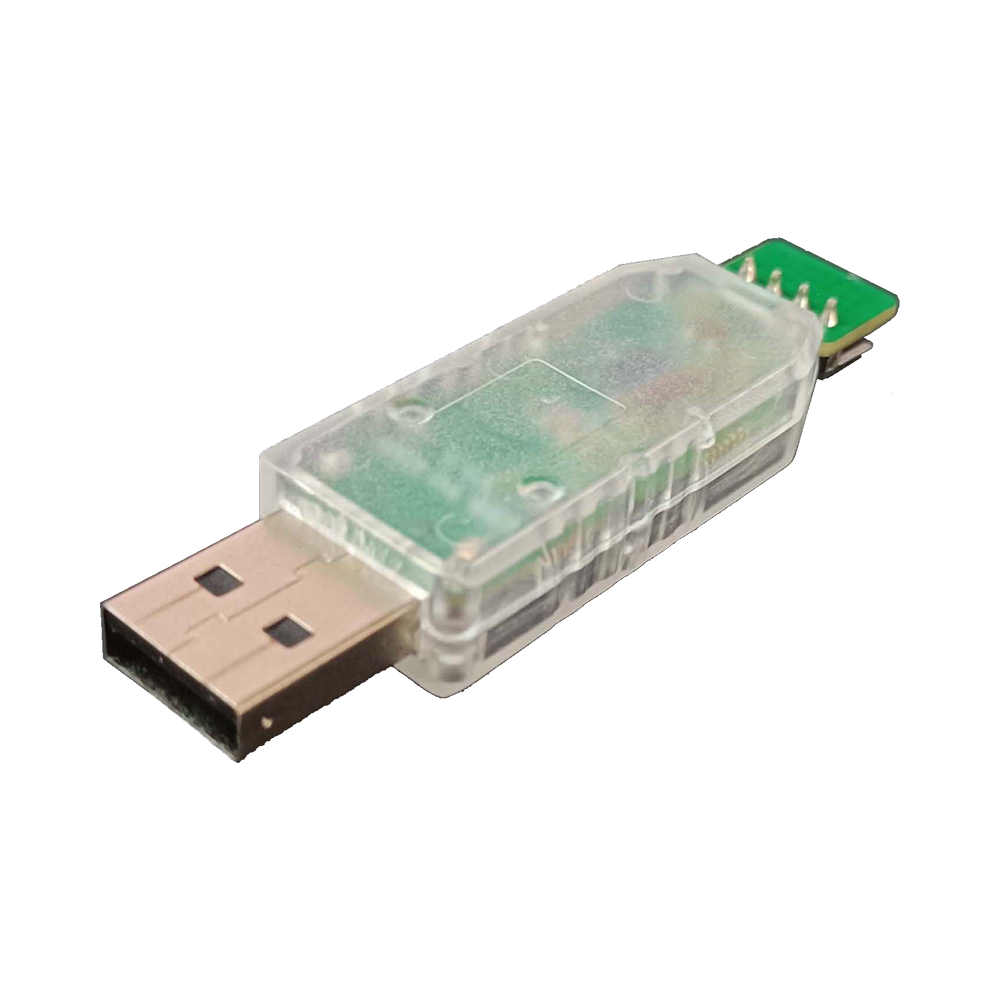

USB to CAN Module

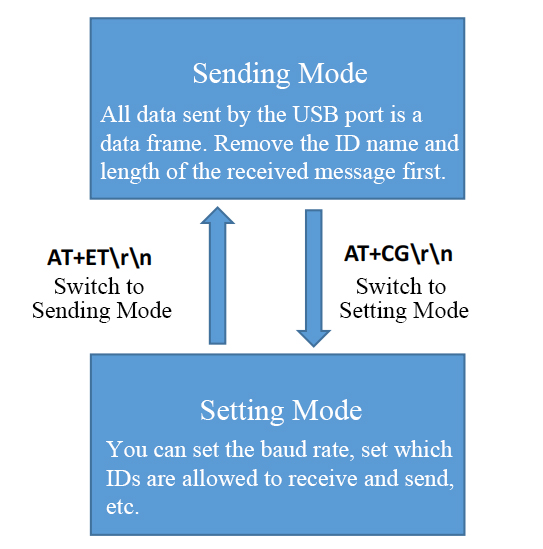

The working modes are mainly divided into transmission mode and configuration mode.

This module converts the serial signals from the USB port to CAN signals and requires the CH340 driver to be installed:

USB to Serial Driver.zip

1. In the configuration mode, you can configure the parameters of the module, such as setting the CAN baud rate, setting the IDs that are only allowed to receive and transmit, etc.

2. In pass-through mode, the data received by the USB terminal does not carry frame ID and length, and the module will remove the frame ID and length of the frames from the CAN network before transmitting them to the USB terminal. All data sent are data frames (standard or extended).By default, only standard frame ID 0x64 is allowed to be sent, and only standard frame ID 0x64 and 0xC8 are allowed to be received.
