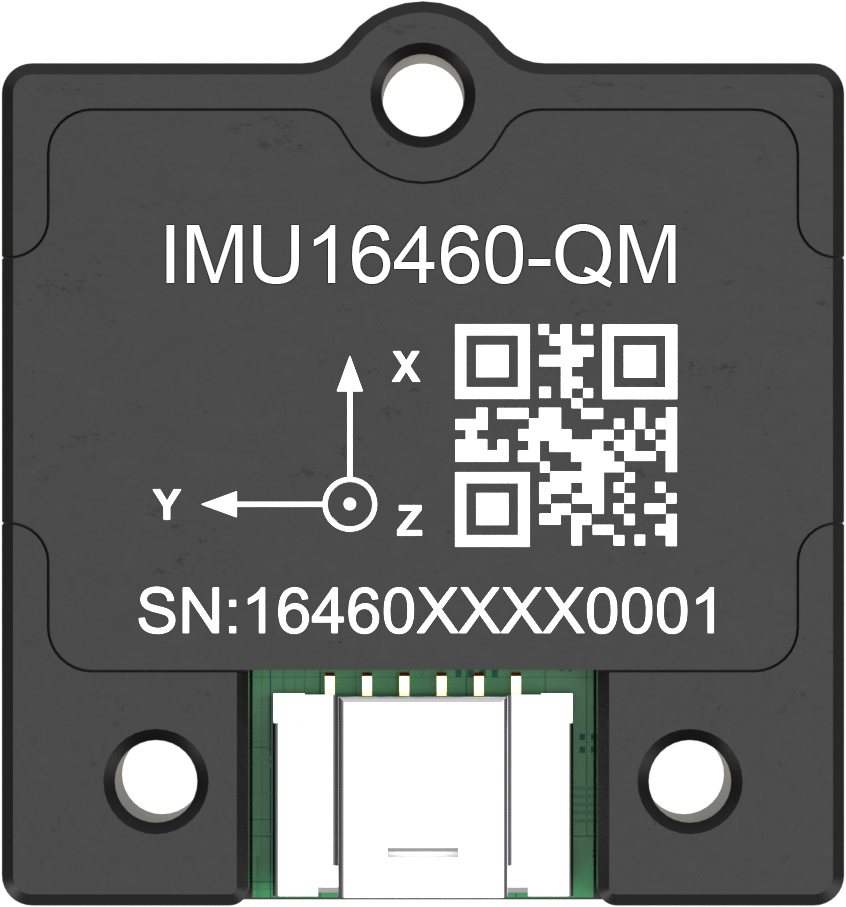

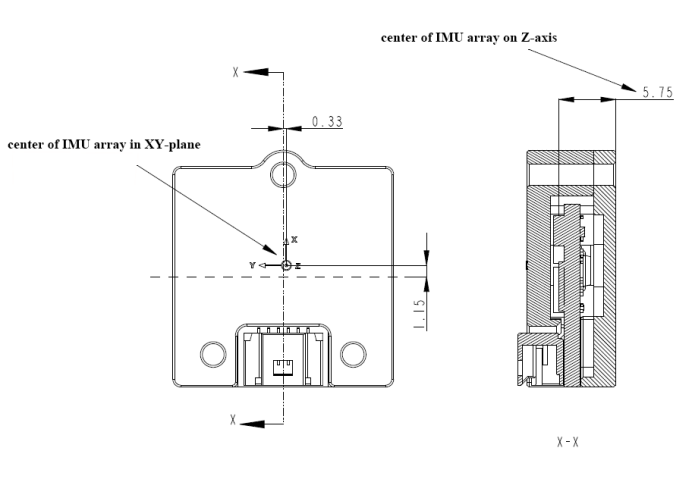

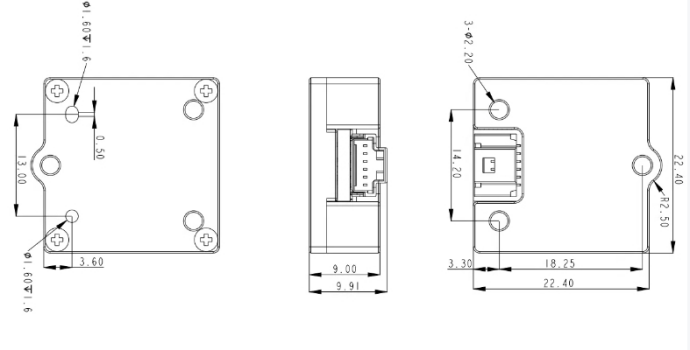

FSS-IMU16460-QM is a MEMS inertial measurement unit (IMU) module with 6 degrees of freedom (DOF) developed by Forsense (Shanghai) Technology Co., Ltd. Standard output includes three-axis gyroscope and accelerometer data.
High precision and resolution combined to help capture subtle vibration and tilt. The output with a large measuring range enables motion perception under large dynamic conditions. All IMU modules are calibrated independently on a rotary table and adjusted precisely over an ultra-wide temperature range in a temperature chamber before leaving the factory, so that they can deliver stable and consistent performance in most extreme conditions.
Applications
l Autonomous Driving: Automobile, Robotics, Engineering Vehicles, and Underwater Scenarios
l Precision Measurement: Underground Environments, Tunnels, Vibration Scenarios, and Tilted Surfaces
l Stabilized Platforms: Pan tilt, Satellite Communication on the Move (Satcom on the Move)
l Automatic Control: Automation System, Fixed-wing UAV
Apart from standard performance and output parameters, Forsense also provides customized services, including software development and LOGO design, to better your products!
Gyroscope Key Specifications
Parameter | Test Conditions/Remarks | Min. | Typical | Maximum | Unit |
Measurement Range | ±2000 | °/s | |||
Bias Instability¹ | @25℃, ALLAN Variance, 1σ | 3.7 | °/hr | ||
Bias Stability | GJB, 10s smoothing | 5 | °/hr | ||
Bias Repeatability | GJB | 10 | °/hr | ||
Resolution | 0.0076 | °/s | |||
Non-orthogonal between axes | 0.02 | deg | |||
Internal Low-pass Cutoff Frequency | Adjustable Software | 116 | Hz | ||
ODR | 1000 | Hz | |||
Measure Delay | 7 | ms | |||
Offset Error over Temperature² | -40°C ~ 85°C ≤1℃/min @1σ | 0.06 | °/s | ||
Random Walk¹ | @25℃, ALLAN Variance, 1σ | 0.75 | °/√hr | ||
Scale Coefficient Error | 2 | ‰ | |||
Scale Factor Nonlinear | 100 | ppm |
Note 1: IEEE standard values acquired from Allan Variance analysis in a static environment (25°C).
Note 2: 1σ variation of full-temperature bias at a heating rate of 1°C/min.
Accelerometer Key Metrics
Parameter | Test Conditions/Remarks | Min. | Typical | Maximum | Unit |
Measurement Range | ±24 | g | |||
Bias Instability¹ | @25℃, ALLAN Variance, 1σ | 33 | μg | ||
Bias Stability | GJB, 10s smoothing | 40 | μg | ||
Bias Repeatability | GJB | 0.5 | mg | ||
Resolution | 0.0916 | mg | |||
Misalignment between axes | 0.02 | deg | |||
Internal Low-pass Cutoff Frequency | Adjustable Software | 116 | Hz | ||
ODR | 1000 | Hz | |||
Measure Delay | 7 | ms | |||
Offset Error over Temperature² | -40°C ~ 85°C ≤1℃/min @1σ | 1.7 | mg | ||
Random Walk¹ | @25℃, ALLAN Variance, 1σ | 0.08 | m/s/√hr | ||
Scale Coefficient Error | 0.5 | ‰ | |||
Scale Factor Nonlinear | 200 | ppm |
Note 1: IEEE standard values acquired from Allan Variance analysis in a static environment (25°C).
Note 2: 1σ variation of full-temperature bias at a heating rate of 1°C/min.
